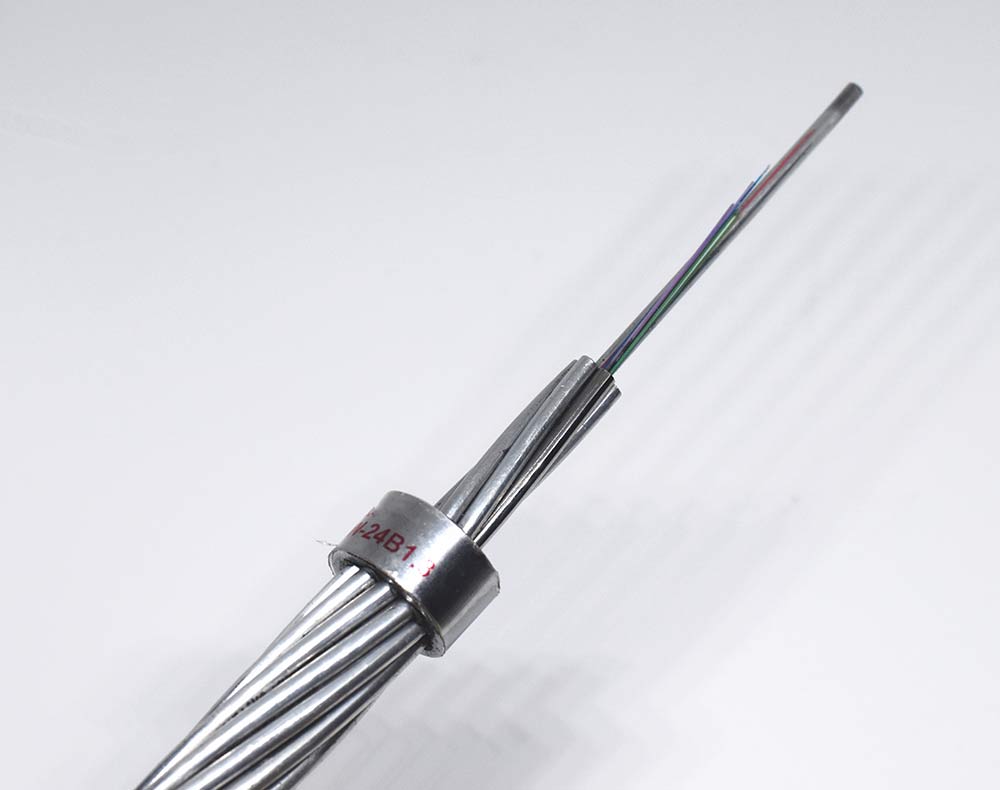

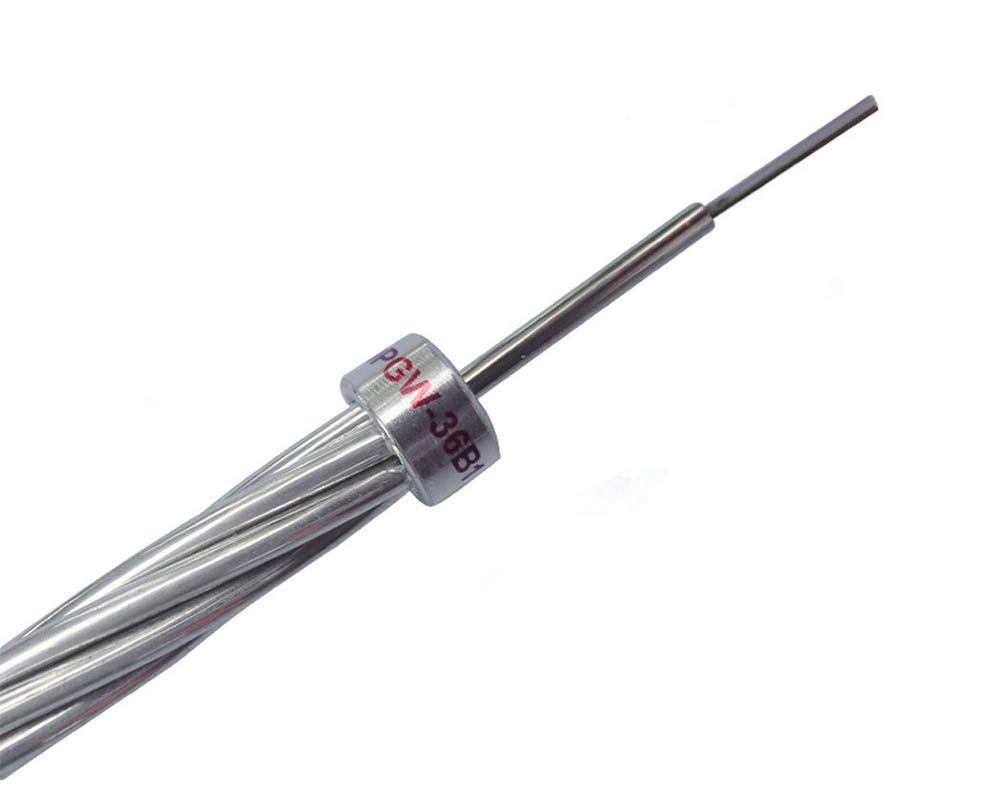

Unitube OPGW
Application
Aerial
Characteristics
-Small diameter, low weight reduces retrofit impact
- Good mechanical and temperature performances
Thick-walled pipe provides crush resistance and boosts fault current rating
Match with common ground wires
Outer wire strands selected to optimize electrical properties
Description
Optical Ground Wire (OPGW) is a dual functioning cable. It is designed to replace traditional static / shield / earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes. OPGW must be capable of withstanding the mechanical stresses applied to overhead cables by environmental factors such as wind and ice. OPGW must also be capable of handling electrical faults on the transmission line by providing a path to ground without damaging the sensitive optical fibers inside the cable.
Order Information
1. CentraCore、HexaCore , AlumaCore
2. 2.4~3.6mm/ACS OD:2.4~3.6mm
3. Packing: 1000M.2000M.3000M.4000M/Drum, as your reference
